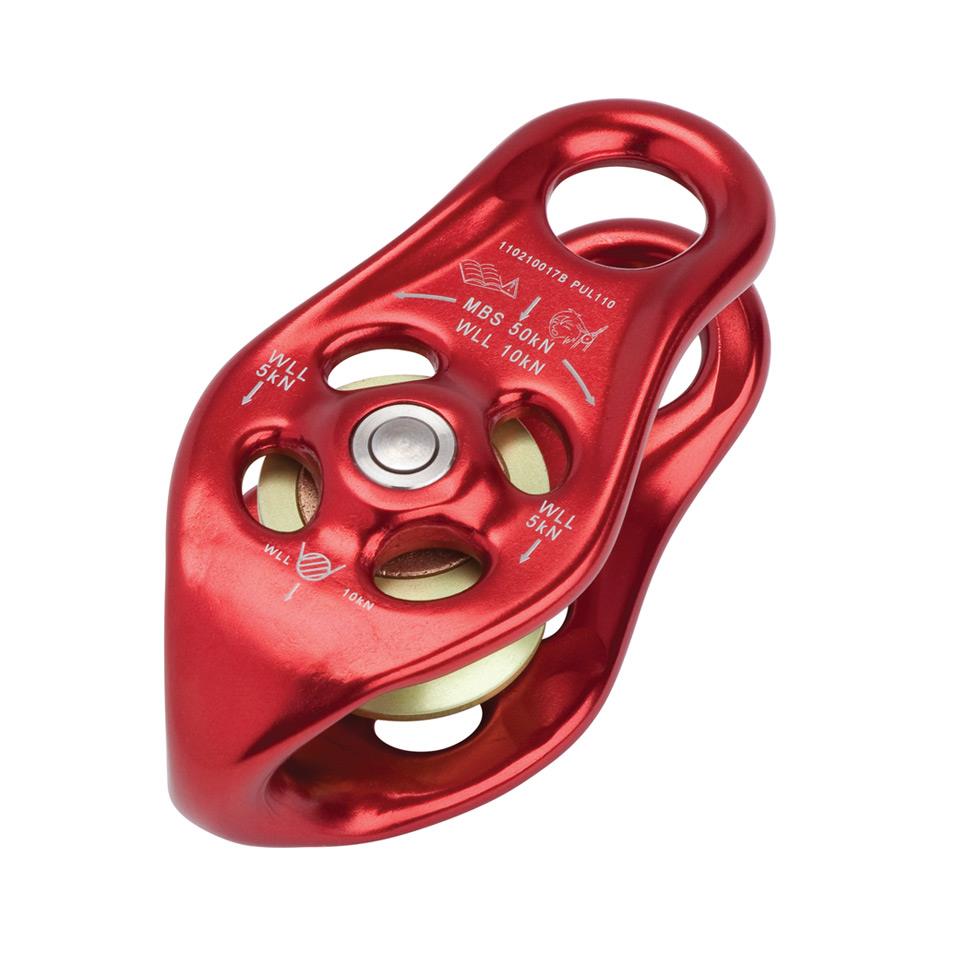

With beautifully smooth parallel connection holes and a load bearing becket, Pinto pulleys can be clipped, hitched, spliced or threaded to give numerous work and rescue configurations. Loved the world over by Treecare professionals, they are equally as useful for rescue and hauling situations.
- To be used on ropes of up to 14mm
- A Spacer is available to support the Pinto cheeks when direct attachment of textile products may cause 'pinching'
Product Code - Pinto Pulley PUL110, Pinto Spacer 12mm PUL110-SPA
Colour - Red
Individual Serial Number – yes Laser Etched.
MBS - 50kN
WLL - 10kN
Dimensions - 90 x 43 x 32mm
Weight - Pinto Pulley 114g, Pinto Spacer 12mm 11g
Max. Rope Diameter - 14mm
Conformance - NFPA 1983 (2012ED) G, EN 12278:2007
