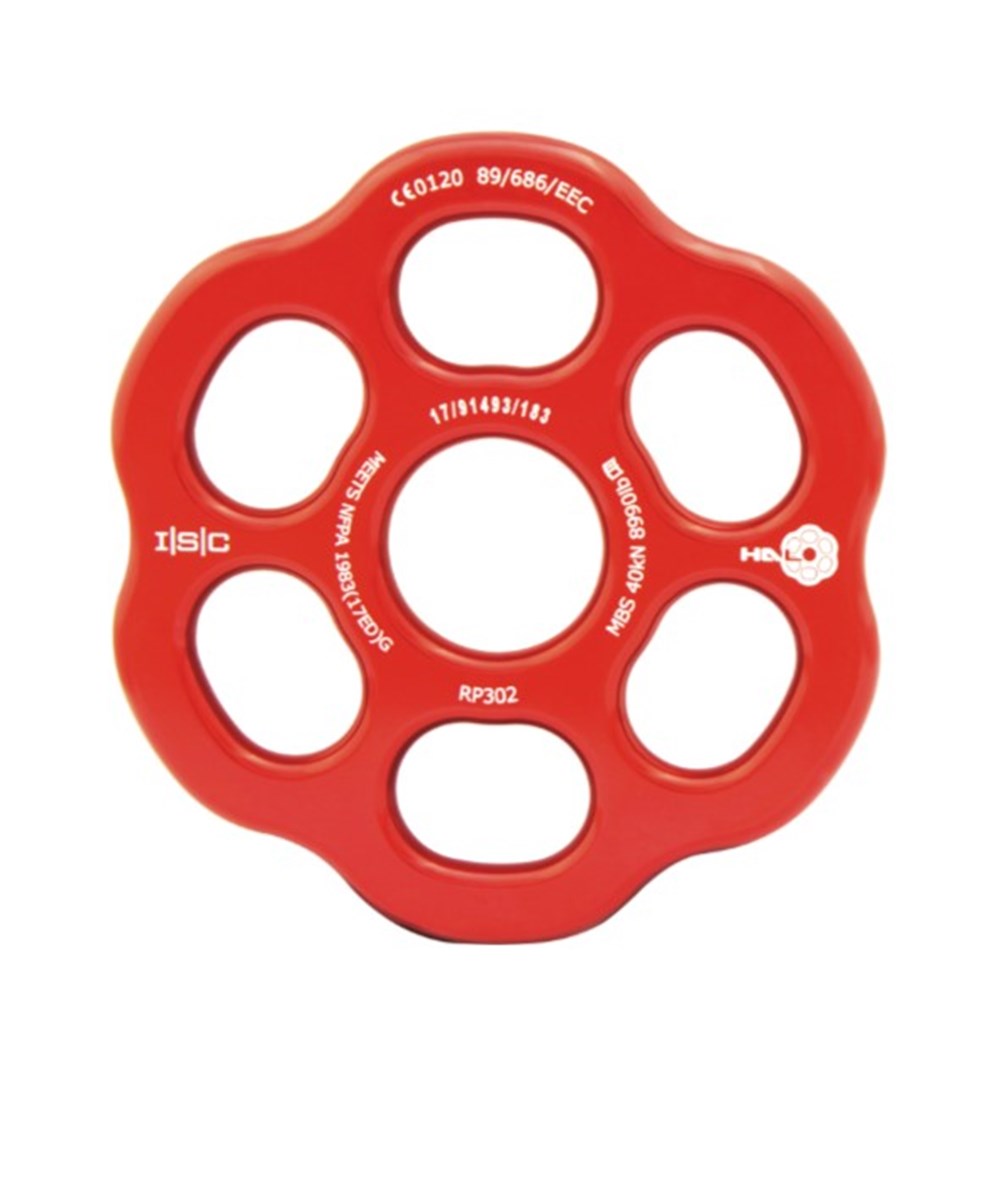

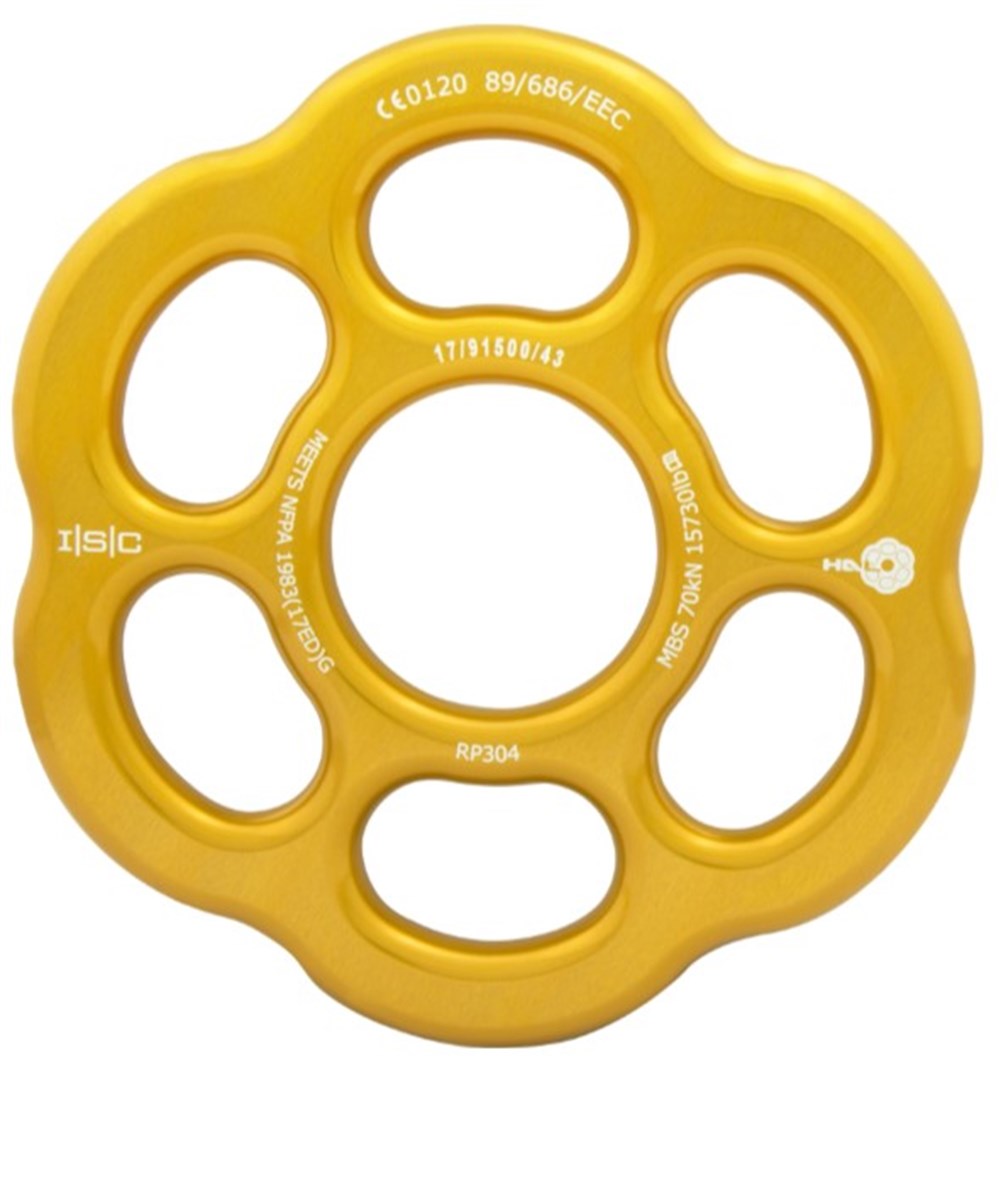

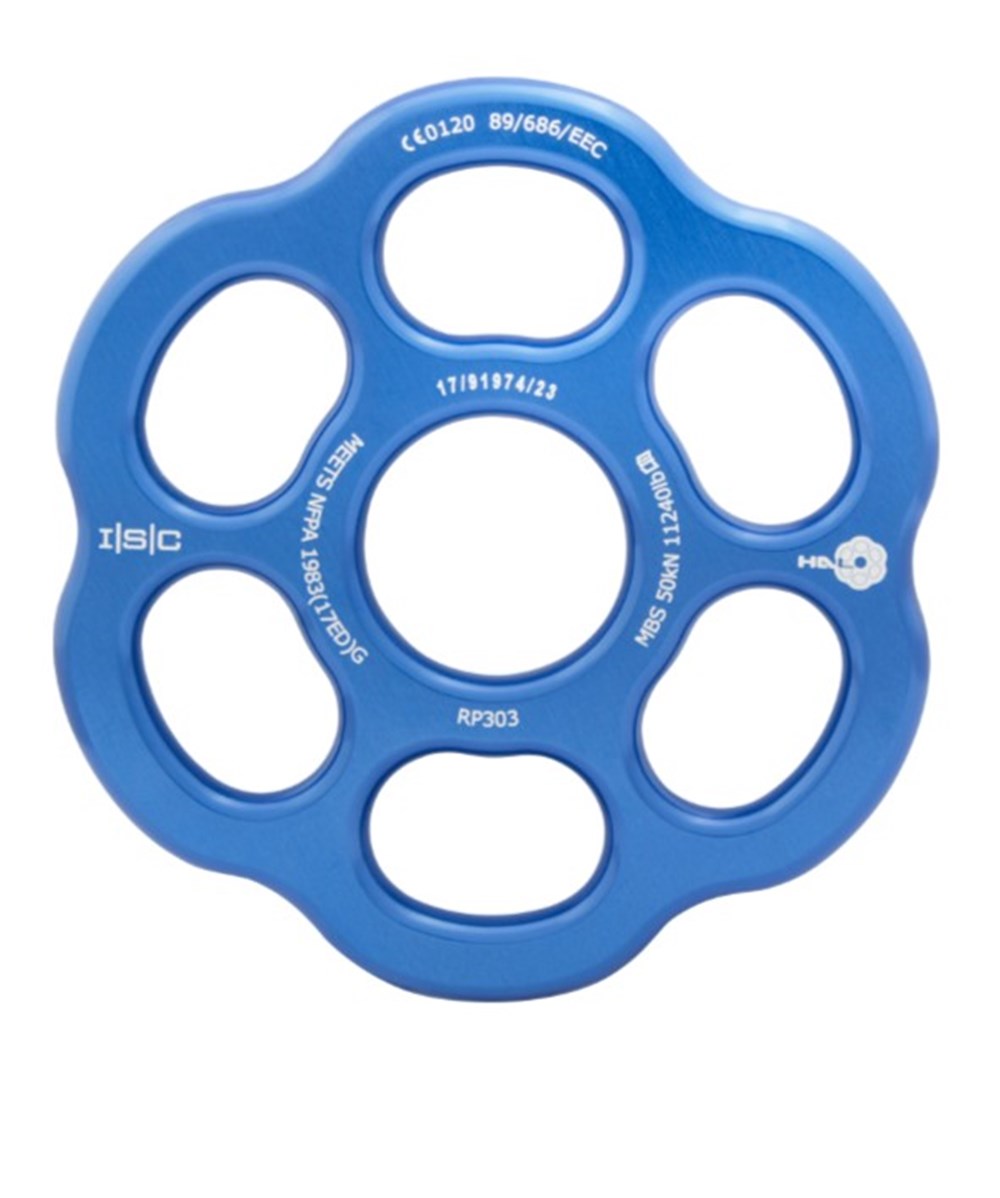

HALO Rigging Plates form part of a compatible system and were developed to match the ratings on our Karabiners and Prussik pulleys at 40kN/ (8992lbf), 50kN (11,240lbf) and 70kN (15,736lbf).
Each plate is manufactured from aerospace grade Aluminium and feature uniquely shaped apertures which allow for loading with multiple Karabiners simultaneously. CNC machined radiused edges make the apertures rope and webbing friendly.
(MBS) Minimum Breaking Strength (kN)40
(MBS) Minimum Breaking Strength (lbf)8992
Serial numberingAs standard
EZYiDAvailable on request
Width (inches)4 1/2
NFPA 1983 (17ED)G
