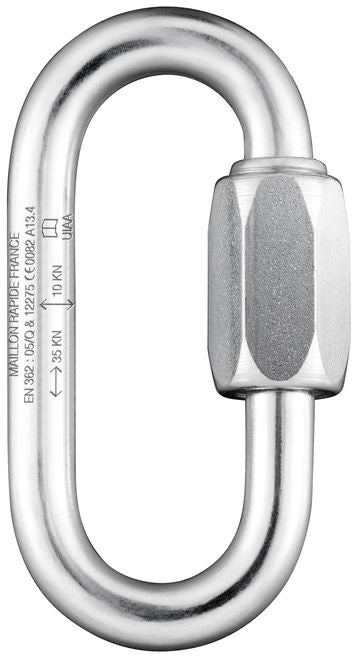

Maillion Rapide Quick link - Stainless steel - Standard - Dia 8 mm

  • Sale
  • Regular price $31.95
  • 7 available
Tax included. Shipping calculated at checkout.

Maillon Rapide quick links are developed for permanent or semi permanent connections.
Providing any connection as a machinery part when fitted with chain, webbing, or wire rope, while being also used as connector on PPE*. Shape, size, material and finishing will be defined accordingly with the required application.
The original oval shape was developed on the principle of a chain link fitted with nut opening. This very shape reflects the spirit of Maillon Rapide quick links connectors.

  • Materials316L Stainless steel grade
  • Diameter (mm)8
  • WLL (kg)1100
  • Breaking load (kg)5500
  • Weight (g)79

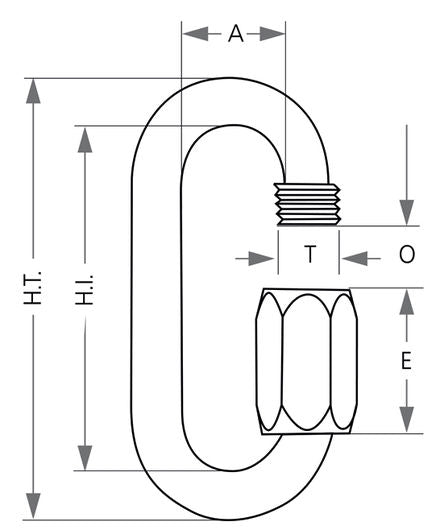

  • A (mm)17.5
  • E (mm)24
  • LI (mm)58
  • LT (mm)74
  • O (mm)11
  • T (mm)11
